Siemens LMV5

Siemens LMV5

Siemens LMV5

The Siemens LMV5 Linkageless Burner Management System delivers a fully-integrated system that offers simple installation and commissioning. The LMV5 is equipped with a range of cutting-edge features to ensure improved burner performance and enhanced efficiency.

Most importantly, the LMV5 burner management system works around the clock to ensure safe operation and accuracy. With the LMV5, you’ll receive a world-class system backed by exceptional performance and support.

  • The LMV5’s fuel-to-air ratio can be quickly adjusted at any time in the firing rate.
  • It boasts 15 programmable points with four different independent positions, including standby, ignition, pre-purge, and post purge.
  • The LMV5 is enhanced by an exceptionally friendly menu system for fast programming and commissioning.
  • You’ll have access to worldwide approvals and technical support.

ATI of New York is proud to be the manufacturer’s representative for Siemens Combustion Controls. We’re home to the Siemens LMV5 Linkageless Burner Management System as well as their entire lineup of world-renown products. Continue reading to learn more about the Siemens LMV5 Linkageless Burner Management System.

LMV5 Linkageless Burner Management System

The LMV5 Linkageless Burner Management System raises the bar and redefines the new standard. Featuring easy installation, programming, and commissioning to proven and reliable control — the Siemens LMV5 delivers a fully-integrated system to meet your facility’s needs and exceed your expectations. A few key features of the LMV5 Linkageless Burner Management System include:

  • Flexibility to accommodate both single and dual-fuel applications.
  • Seamlessly integrated burner flame safeguard, linkageless control, and modulation PID control.
  • Integrated PID Temperature/Pressure Controller with an auto tune for an exceptionally accurate process control.
  • The ability to control as many as six independent actuators for maximized efficiency in low NOx burner applications.
  • VFD control equipped with a motor RPM speed sensor that delivers efficient, reliable, and safe control of the combustion air blower.
  • As many as 15 different programmable points for every fuel-air ratio curve that delivers enhanced flexibility and more stringent control.
  • Integrated gas valve proving system that automatically works to detect leaks on each burner cycle for improved safety.
  • 900 highly-repeatable actuator positions for precise control.
  • Actuators provide digital positioning feedback to ensure unparalleled repeatability.
  • Reliable light off is provided by independent ignition positioning.
  • Annunciation of more than 500 fault conditions permits accurate and quick troubleshooting.
  • Optional Flue Gas Recirculation Hold based on Stack Temperature/Time for dependable burner operation and reliable light off.
  • Adjustable Flame Failure Response Time.
  • Available 02 Trim for Standard (LMV52.2) and Ultra-Low NOx (LMV52.4) burner applications.

LMV51 Linkageless Burner Management System Model

The LMV51 Linkageless Burner Management System seamlessly integrates burner flame safeguard, linkageless control, and modulating PID control. This innovative system boasts the ability to manage up to three simultaneous actuators with 900 highly-repeatable actuator positions for unparalleled control. As a leader in the linkageless control market, the LMV51 delivers unmatched performance — backed by worldwide approvals and professional technical support.

LMV52 Linkageless Burner Management System Model

Offering an optional and additional Variable Frequency Drive (VFD) control and/or O2 trim, the LMV52 can simultaneously control up to five actuators to deliver optimized efficiency in low NOx burner applications. The LMV52 incorporates all of the desirable features of the LMV51 with high impact options and additional possibilities for actuator control. With the LMV52, you’ll have superior flexibility to:

  • Improve process control,
  • Safely meet control needs, and
  • Reduce energy costs.

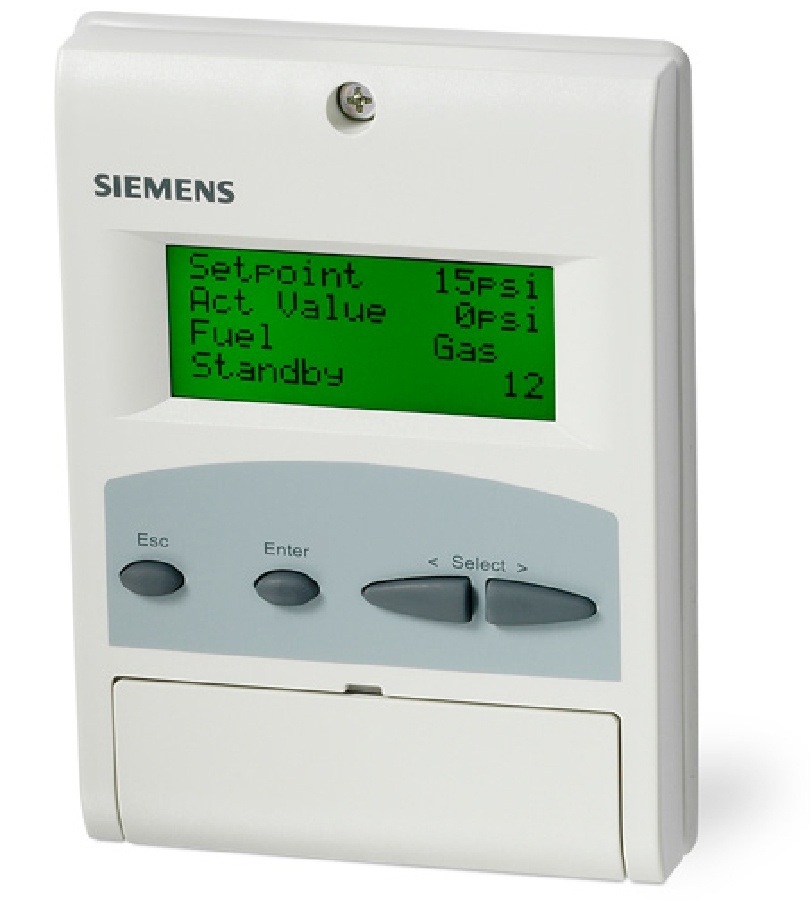

Easy-to-Use, Fully Integrated HMI

Siemens LMV5

The LMV5 is engineered to allow hassle-free and streamlined programming and commissioning. As a matter of fact, you can program and commission your LMV5 in minutes —instead of days. Simply log into the interface, choose the right programming option, and define your chosen parameters!

  • It allows you to easily access and monitor the system at all times.
  • User-friendly system is uniquely designed for fast programming and commissioning.
  • For enhanced security, it features multi-level password protection.
  • Fast troubleshooting is facilitated by real text annunciation of fault conditions.
  • Features real-time ModBus communication.

The Key to Control Is Superior Accuracy

Siemens LMV5

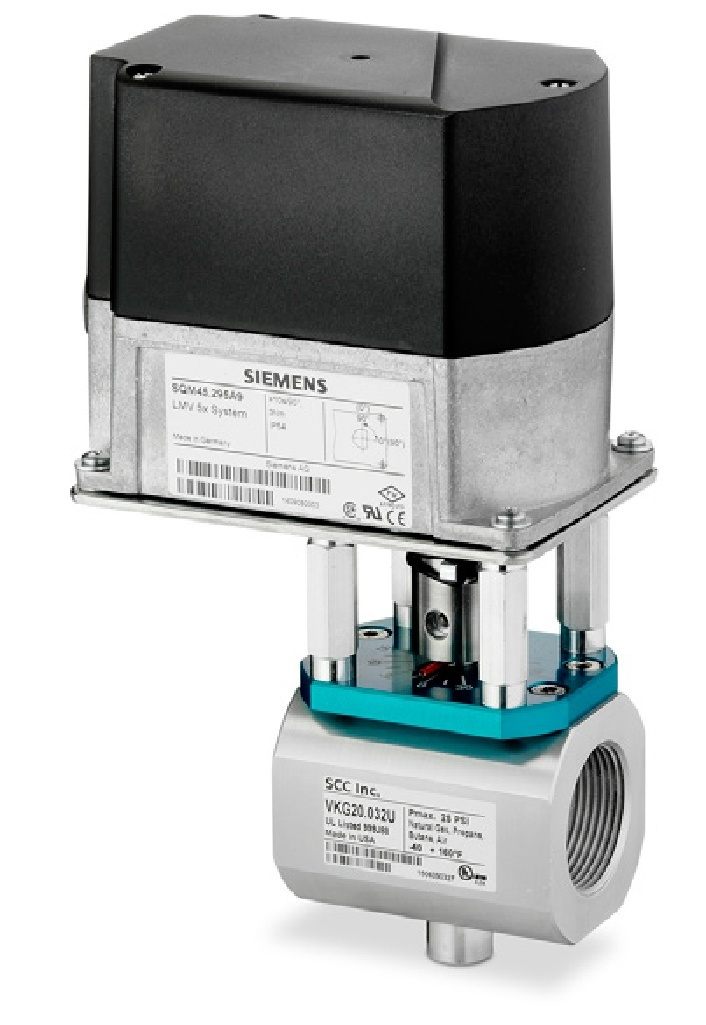

The precise movement of the SQM4 actuator is accurate to the 1/10th of a degree. This exceptional accuracy is driven by a digital Can-Bus signal. A digital feedback signal makes sure the proper positioning is maintained throughout the entire modulating range.

With Siemens LMV5 Linkageless Burner Management System, you can rest assured you’ll have accurate control. This works to ensure the burner performs with accuracy, repeatability, and within the recommended safety parameters.

Contact ATI of New York for the Siemens LMV5

The Siemens LMV5 Linkageless Burner Management System is a fully-integrated system that is easy to use as well as install. The LMV5 includes the features to deliver improved efficiency, bolstered burner performance, enhanced efficiency, and safe operation. In addition, high impact options for the Siemens LMV5 Linkageless Burner Management System are designed to improve process control, meet specific control needs, and reduce energy costs.

ATI of New York is the authorized manufacturer’s representative for Siemens Combustion Controls — offering their entire product lineup including the Siemens LMV5 Linkageless Burner Management System. Our experienced team will work closely with you to understand your needs and guide you to the best solution.

Contact ATI of New York today.
