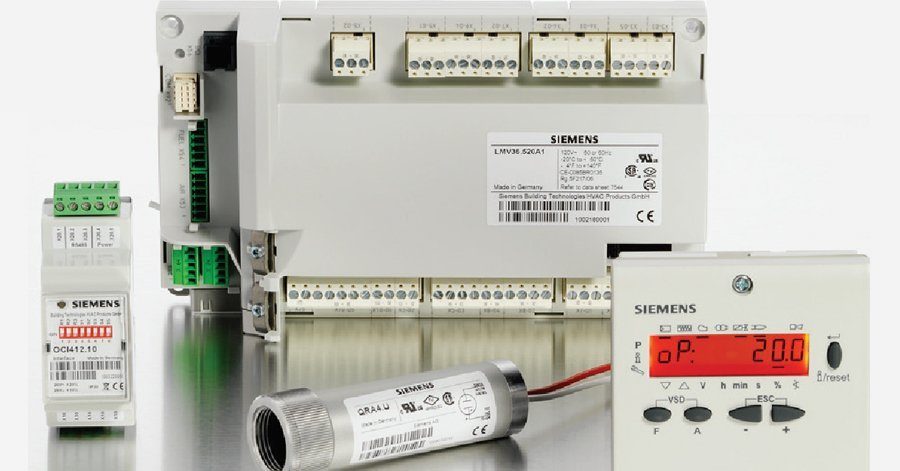

The Siemens LMV3 Linkageless Burner Management System is uniquely engineered to raise the bar and redefine the standards for single or dual fuel burner controls. The LMV3 boasts streamlined installation, programming, and commissioning to deliver proven, reliable control. All of these innovations help the LMV3 Linkageless Burner Management System deliver optimized and maximized return on investment.

ATI of New York is proud to be the preferred manufacturer’s representative for Siemens Combustion Controls — offering their entire lineup of products. Continue reading to learn more about the Siemens LMV3 Linkageless Burner Management System.

Siemens LMV3 Linkageless Burner Management System

As a world-class solution, the LMV3 allows Siemens to forge new grounds by delivering a fully integrated flame safeguard linkageless system. In addition to being easy to use and install, the Siemens LMV3 Linkageless Burner Management System works around the clock to bolster efficiency and performance while promoting safe operation. A few of the key features and benefits of the Siemens LMV3 Linkageless Burner Management System include:

  • Flexibility by offering both dual and single fuel versions.
  • Password-restricted access to different service level parameters and OEM.
  • Streamlined commissioning, efficient programming, and simplified installation allows for maximum return on investment.
  • Ability to program through a PC or keypad.
  • Independent actuator positions for ignition, pre-purge, home, and post-purge.
  • Flexible purge timing up to 60 minutes.
  • Programmable stops to pause the startup sequence for pilot ignition, pre-purge, pre-ignition, pilot ignition and main flame.
  • Adjustable time overlap of pilot valve and spark ignition transformer.
  • Customizable overlap of the main gas valves and the pilot.
  • Switch monitoring for Proof of Closure.
  • Option to have a gas valve leak test on start up, shutdown, neither, or both.
  • An optical encoder that provides verification of the actuator shaft position.

In addition, the Siemens LMV3 Linkageless Burner Management System will accept a 4-20mA firing rate control signal from virtually all PID controllers, including the Siemens RWF10 or Siemens RWF40.

The Siemens LMV3’s Innovative Fuel Air Ratio Control

Siemens LMV3

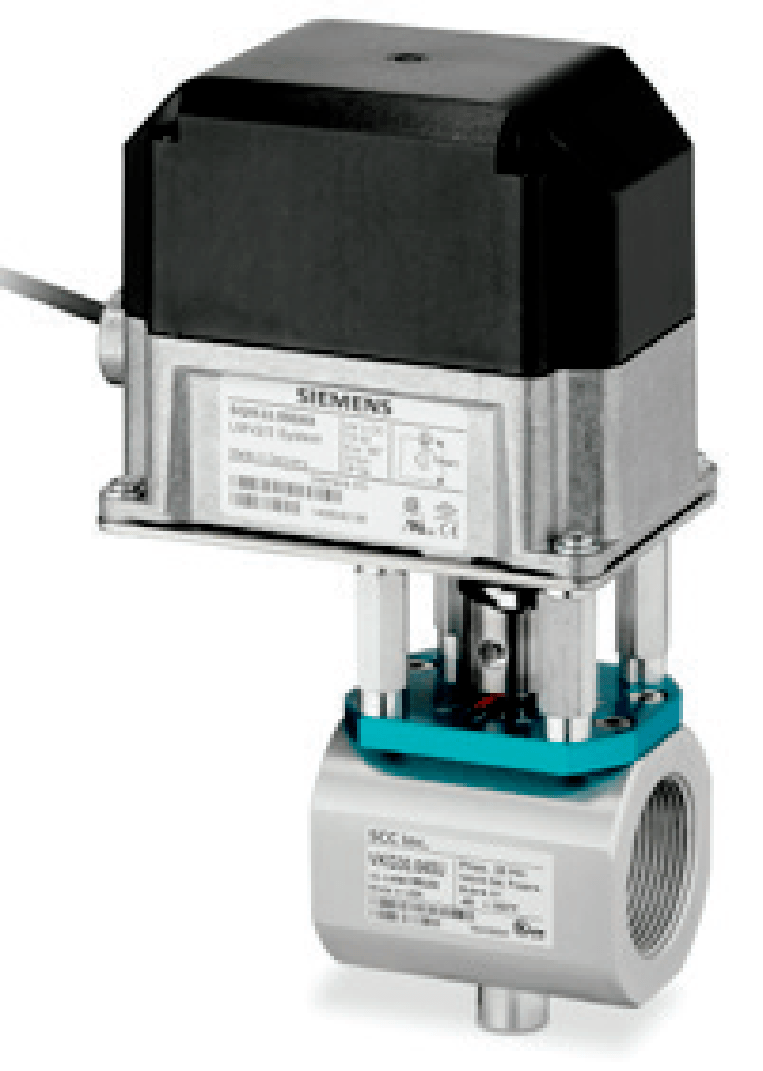

The Siemens LMV3 Linkageless Burner Management System boasts the ability of positioning one Variable Speed Drive (VSD) and up to two actuators at the same time on programmed curves with an exceptional accuracy of 0.1% on VSD and 0.2 degree with actuators. Even the standard programs offer a range of fuel train options, including PWM control and staged oil:

  • Nine programmable points for each curve, per fuel
  • Individual, programmable actuator positions for low-fire and ignition
  • The Siemens LMV3 offers the ability to use up to two fuel actuators with separate combustion curves.

State-of-the-Art Communication and Annunciation

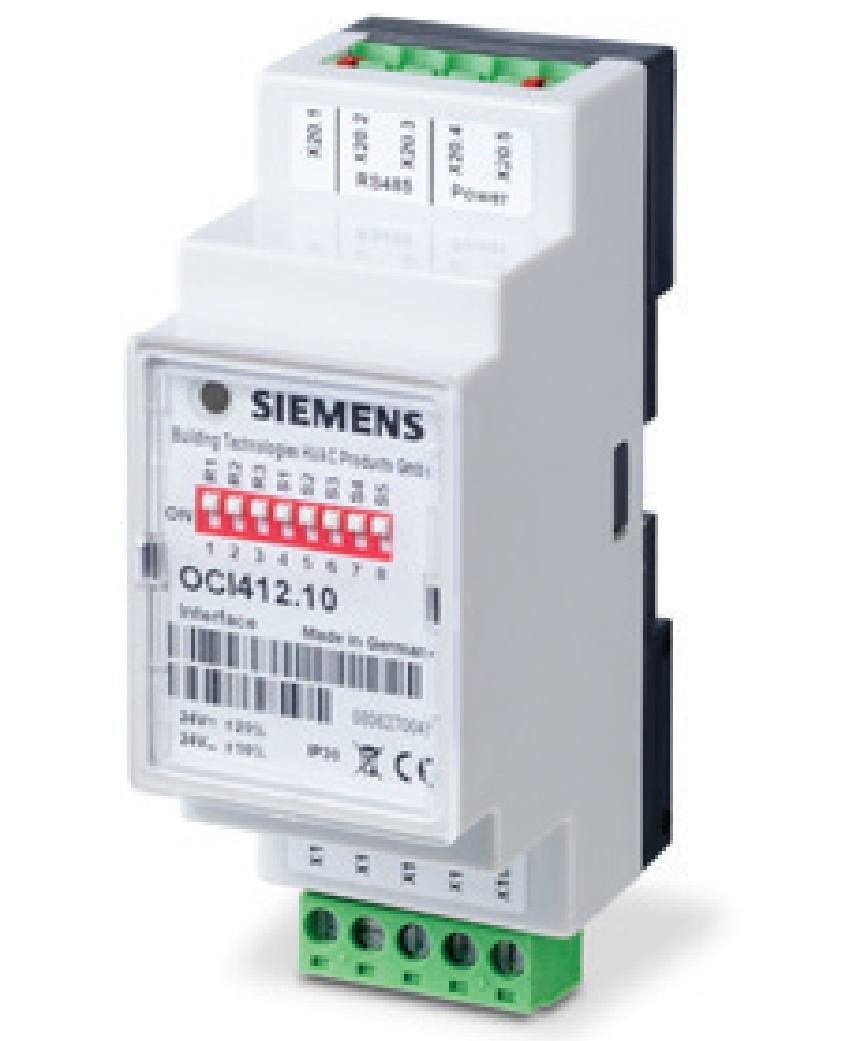

The Siemens LMV3 comes equipped with the RS485 Modbus RTU Communications. This Modbus is one of the most widely accepted solutions because of its reliability and ease of use. The LMV3 offers over 40 read write registers that enables exact control and burner supervision. The registers include:

  • Flame Signal Intensity
  • Fault History
  • History of Lockout
  • Remote firing rate control
  • Fuel flow through flow meters
Siemens LMV3

Siemens LMV3 Features the ACS410 PC Commissioning Tool

Siemens LMV3

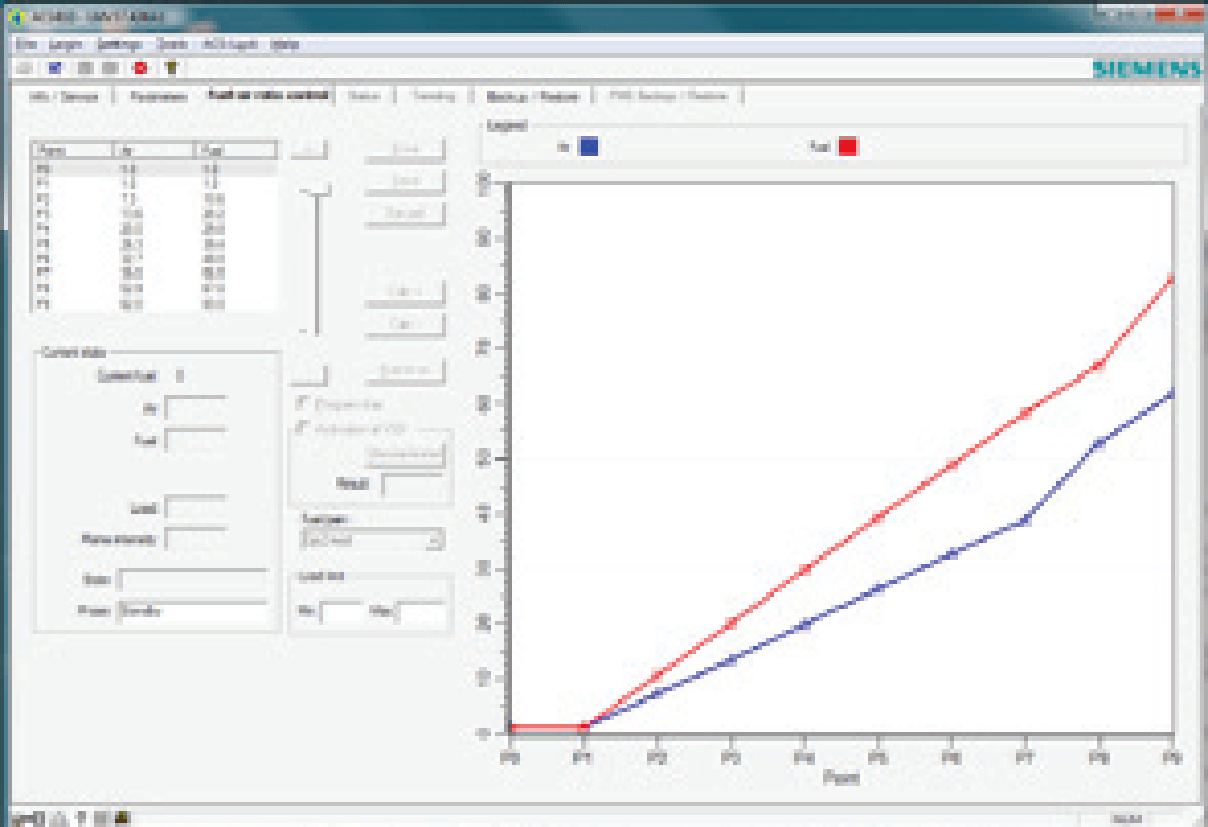

Commissioning your Siemens LMV3 has never been easier than it is with the ACS410 PC Commissioning Tool. This convenient tool is engineered to visualize, save, and transmit the vital data delivered by its advanced microprocessor-based burner control. The ACS410 offers the following burner control functions:

  • Reading the parameters and settings, states of operation, and types of burner control errors.
  • Reporting functions for printing the burner control settings to allow exceptional documentation purposes.
  • Data logger that offers the ability to record, trigger, and present the data delivered by the burner control.

In addition, the ACS410 PC Commissioning Tool allows you to view real time information while easily trending, logging, and printing data. This optimized commissioning tool gives you the ability to configure, backup, and restore information to a computer.

The Siemens LMV3 Offers Reliable Flame Monitoring

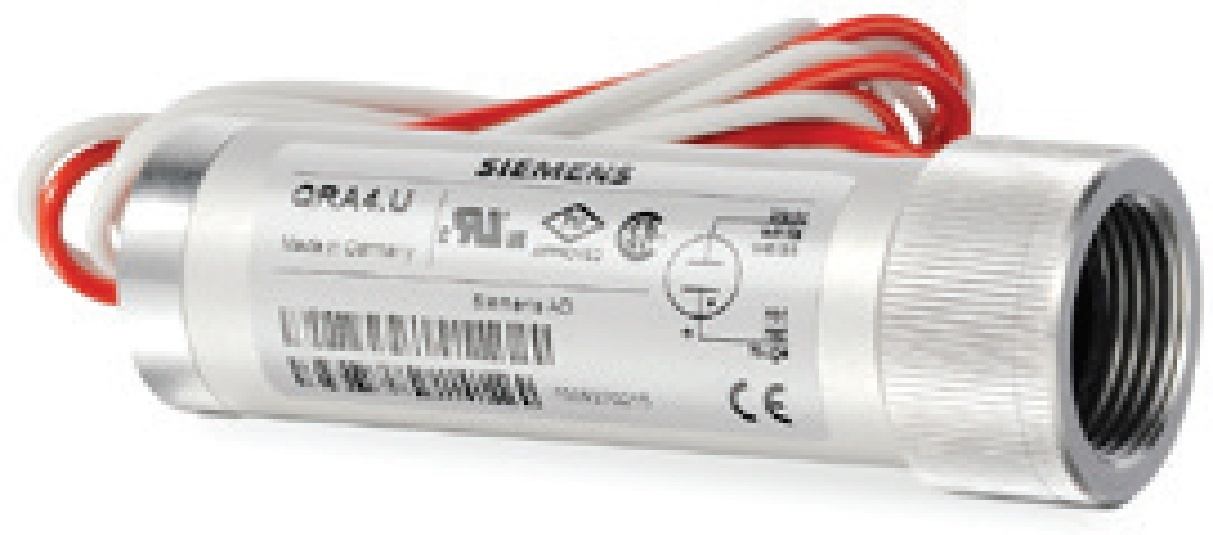

The Siemens LMV3 features a reliable flame monitoring system that is easy to use and durable. In addition, the flame monitoring system:

  •  Includes enhanced flexibility with optional Flame Rod or UV supervision.
  • Operates by a simple configuration that chooses the most ideal flame detector.
  • Doesn’t require the exchange of controls or amplifiers.
Siemens LMV3

Contact ATI of New York for the Siemens LMV3

If you’re looking for a cutting-edge and cost-effective burner management system, the Siemens LMV3 will meet your needs and exceed your expectations. This system if flexible enough to operate with single or dual fuel burner controls on hot water boilers, steam boilers, industrial boilers, and thermal fluid boilers. The LMV3 Linkageless Burner Management System offers the unique opportunity for improved efficiency and burner performance, while ensuring the reliable, safe, and accurate operation.

Most importantly, you can find the Siemens LMV3 Linkageless Burner Management System as well as the entire lineup of Siemens Combustion Controls at Applied Technologies of New York. We’re proud to be the preferred authorized manufacturer’s representative for Siemens. Our experienced sales team will carefully listen to your needs and guide you to the best solution to help you achieve your goals.
