Siemens Electronic Water Level Control System

Siemens Electronic Water Level Control System

Siemens Electronic Water Level Control System

Protecting your boiler investment starts with the Siemens Electronic Water Level Control System. This vital system redefines standards for maintaining accurate water level in the steam drums of your boilers, condensate return tanks, and deaerating feed water tanks. This cutting-edge and reliable system maintains a consistent level of water, which is essential for reliable, efficient boiler operation.

ATI of New York is the authorized manufacturer’s representative for Siemens Combustion Controls, and we offer their entire lineup of cutting-edge parts and systems. Continue reading to learn more about the Siemens Electronic Water Level Control System.

Siemens Electronic Water Level Control System Key Features & Benefits

Siemens Electronic Water Level Control System is comprised of several innovative features that seamlessly work to provide a consistent water level while delivering reliable and efficient operation. It’s equipped with a “SMART” differential pressure transmitted that is fitted with an application-specific single loop PID controller, a three-valve manifold, and an electrically-actuated ANSI 250 control valve assembly. Additional features and benefits of the Siemens Electronic Water Level Control System include:

  • Simplified and streamlined installation and commissioning
  • 100% solid state system
  • Three different levels of password protection
  • Digital display of set-point and actual level
  • local/manual control options
  •  Local adjustment of set point via keystrokes

Continuous Level Control, Universal Applications

As previously mentioned, accurate feed water control is vital for the reliable and efficient operation of your boiler. If the water level is too high, it can cause water carryover. However, if the water level is too low, it can expose the boiler tubes to overheating, which can result in expensive damages.

The Siemens Electronic Water Level Control System minimizes these concerns by delivering a consistent water level as well as:

  • Reduced thermal shock to boiler
  • More efficient boiler operation
  • Minimal boiler water carryover
  • arrow-right
    Reduced feedwater pump wear

Enhanced Differential Pressure Transmitter

Siemens Electronic Water Level Control System

The Siemens Electronic Water Level Control System is engineered with an enhanced  transmitter for differential pressure that senses differences in pressure and produces precise measurements. A few highlights of what makes this solution:

  • Explosion-proof, rugged, industrial grade construction
  • Repeatable and accurate to 0.2” w.c. with a 100” span
  • Locally programmable through push buttons or externally via HART
  • Troubleshooting is simplified through manual output mode.
  • SMART transmitter can be spanned with empty vessel
  • Wiring is simplified via loop powered output signal.

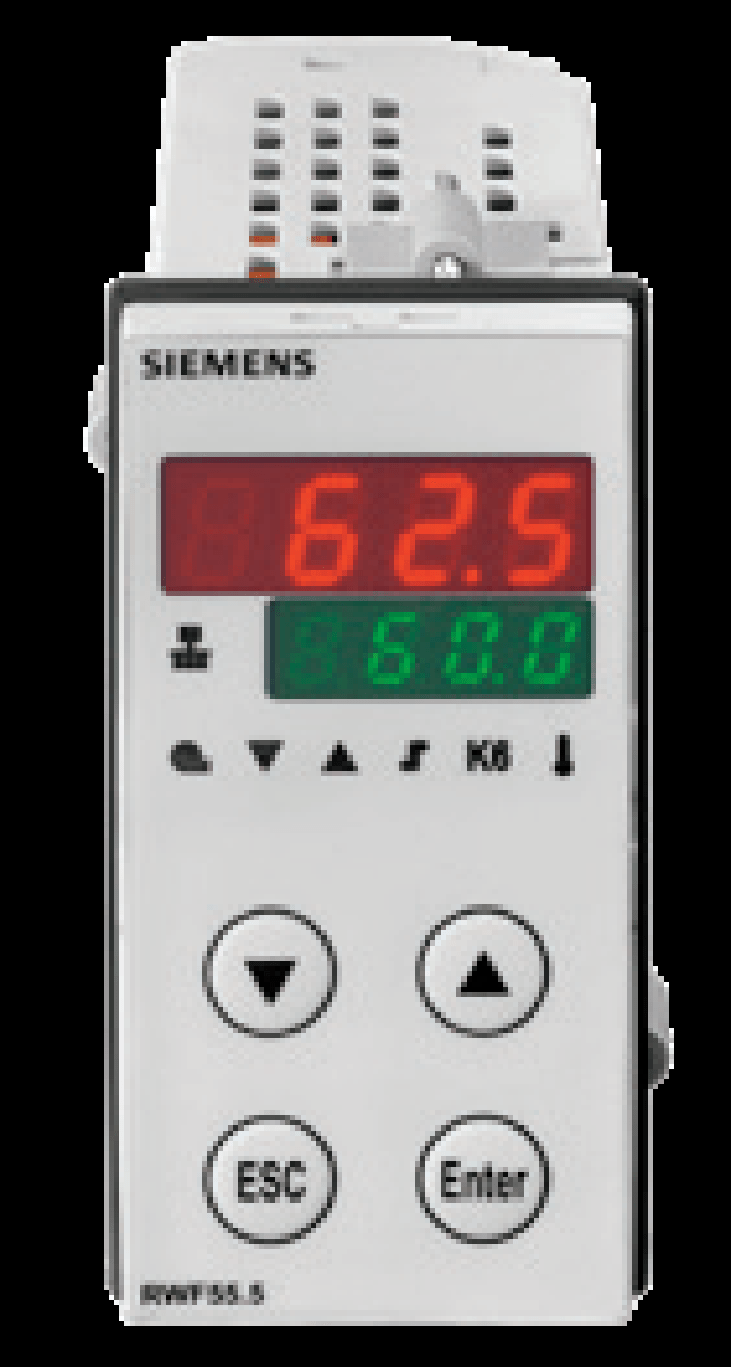

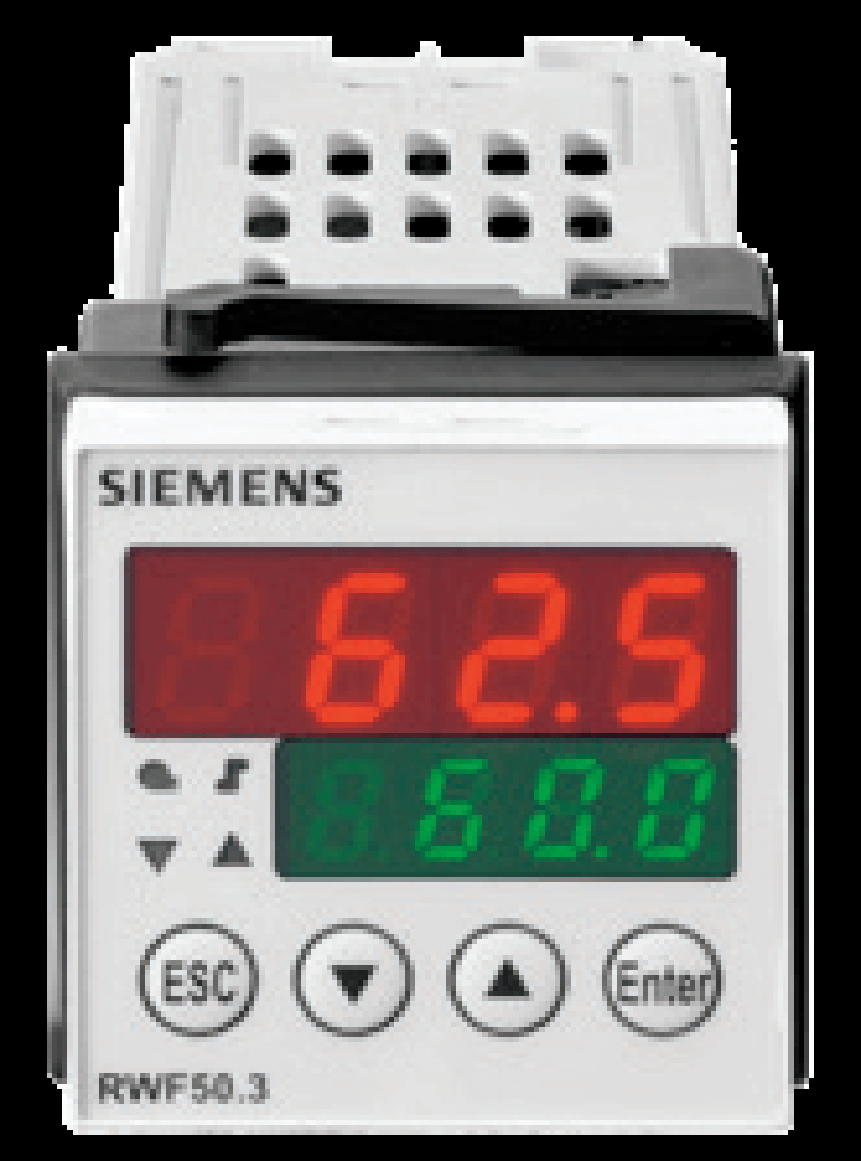

RWF Single Loop PID Controller

Siemens Electronic Water Level Control System
Siemens Electronic Water Level Control System

The Siemens Electronic Water Level Control System is also engineered with an RWF single-loop temperature/pressure controller. Features and benefits of the controller includes:

  • Adjustable set-point/parameters
  • Adjustable PID parameters for precise level control
  • Display of actual and set point level
  • Transmitter power provided by an integrated 24 VDC power supply
  • Two customizable integrated relays
  • Available ModBus integration
  • Programmed parameters are password protected

Control Valve Assembly

Siemens Electronic Water Level Control System

Some key features of Siemens’ control valve assembly include:

  • Reliable ANSI Class 250 design
  • Engineered with a high-temperature stainless steel trim
  • Offered in normally closed or normally open configurations
  • Low noise, high flow optimized design
  • Field-replaceable packing cartridge, valve disc and stem.
  • Commissioning is simplified with self-calibrating electronics
  • Installation is streamlined by the bolt-on actuators
  • If required, position switches are available for pump operation.
  • Flexibility with linear, reverse, equal percentage, or direct operation selected through dip switches.

In addition, the Siemens Electronic Water Level Control System’s control valve assembly allows for the local override of the actuator by the manual operator in the event of a failure of power.

Contact ATI of New York for Siemens Combustion Controls

Accurate feed water control is crucial for the reliable and efficient operation of your boiler. The Siemens Electronic Water Level Control System works to ensure a consistent water level is maintained in the steam drums of your boilers, condensate return tanks, and deaerating feed water tanks.

ATI of New York is the authorized manufacturer’s representative for Siemens combustion controls — offering the Siemens Electronic Water Level Control System and many other cutting edge controls. Contact ATI today for more information on how Siemens Combustion Controls will enhance the efficiency of your boiler operation.
