Experience the Re-Verber-Ray MP Series by Detroit Radiant Products

Experience the Re-Verber-Ray MP Series by Detroit Radiant Products

If you're looking for a fully-modulating infrared heater, the Re-Verber-Ray MP Series is a modern marvel. It's the only infrared heater that empowers you to choose the most suitable performance curve for your facility. The Modulating Plus (MP) Low-Intensity Tube Heater — MP Series by Detroit Radiant Products elevates the status quo with innovative modulating technological solutions.

The MP Series line of heating equipment offers you access to state-of-the-art technology — like "Blast Mode" for demanding environmental as well as three different performance curves —  to give you more control and excellent efficiency. As the authorized manufacturer's representative for Detroit Radiant Products, ATI of New York offers the entire lineup of Re-Verber-Ray MP Series modulating plus tube heaters. Let's take a closer at a few of the key features and benefits of the MP Series.

The Re-Verber-Ray MP Series by Detroit Radiant Products

Offering a robust input range spanning from 80,000 to 200,000 BTU/h, the Re-Verber-Ray MP Series is designed to meet a vast range of needs. It boasts the ability to operate on both natural or propane gas and can be ordered in lengths anywhere from 25 feet up to 70 feet.

The MP Series is engineered with high-quality components throughout to facilitate ease of maintenance. In addition to its innovative construction, the Re-Verber-Ray MP Series includes several versatile operational features:

  • You can select from three different performance modes based on your needs.
  • It features a "Blast Mode" that allows you to momentarily set the heater to the highest input with an additional 5,000 BTUs. This setting has proven to be ideal for the most extreme environments.
  • Full gas modulation with corresponding airflow modulation helps achieve optimized comfort levels and excellent fuel utilization.
  • Includes technological solutions that help reduce off/on cycles to save energy.
  • It offers a high-fire startup to quickly responds to the environmental demands of the facility.

Available MP Series Models

Depending on your unique facility needs, you can choose from a range of different MP Series models:

MP Series Model#

Blast Mode Rate (MBH)

Standard Modulating Range (MBH)

Length

Factory Recommended Mounting Heights

Weight of

Unit

MP-25-80

85

52 - 80

26'-5"

12' to 20'

145 lbs.

MP-30-80

85

52 - 80

31' - 5"

12' to 20'

160 lbs.

MP-30-115

120

75 - 115

31' - 5"

14' to 22'

160 lbs.

MP-40-80

85

52 - 80

41' - 1"

12' to 20'

190 lbs.

MP-40-115

120

75 - 115

41' - 1"

15' to 25'

190 lbs.

MP-40-150

155

97.5 - 150

41' - 1"

15' to 28'

190 lbs.

MP-50-115

120

75 - 115

50' - 9"

15' to 28'

235 lbs.

MP-50-150

155

97.5 - 150

50' - 9"

17' to 30'

235 lbs.

MP-50-200

200

130 - 194

50' - 9"

19' to 37'

235 lbs.

MP-60-150

155

97.5 - 150

60' - 5"

17' to 32'

265 lbs.

MP-60-200

200

130 - 194

60' - 5"

19' to 37'

265 lbs.

MP-70-200

200

130 - 194

70' - 1"

19' to 42'

300 lbs.

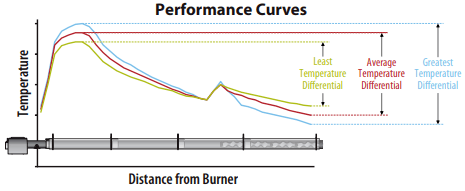

Performance Selector Modes

Re-Verber-Ray MP Series

When it comes to your building needs, there are no one-size-fits-all solutions. As a result, the MP Series is programmed to function on several different performance curves. And you can select the performance curve that best meets the needs of your facility.

Comfort Mode

When in Comfort Mode, the unit performs to keep temperature differentials minimized throughout the length of the heater. Comfort Mode offers greater perceived comfort than other modes primarily because of the even levels of dissipated heat. Common applications for Comfort Mode include:

  • Kennels
  • Loading Docks
  • Patios
  • Lunch Rooms
  • Break Areas
  • Woodworking Shops
  • Golf Driving Ranges

Standard Mode

In Standard Mode, your system will function by striking a perfect balance between Economy Mode and Comfort Mode. This performance setting is engineered to be efficient while still minimizing the temperature differentials associated with Economy Mode. Common applications for Standard Mode include:

  • Auto Showrooms
  • Service Garages
  • Manufacturing
  • Fire Stations
  • Populated Warehouse Heating

Economy Mode

In Economy Mode, the MP Series works to deliver maximized thermal efficiency. As the most thermally efficient mode, Economy Mode ensures it quickly dissipates heat. Common Applications for Economy Mode include:

  • Foundries
  • Aircraft Hangars
  • Pole Barns
  • Car Washes
  • Unpopulated Warehouses

The MP Series Advanced Controller Options

The MP Series comes loaded with a range of custom features that empower you to have more control. The Premium User Interface (PIU) is an advanced smart logic microprocessor controller engineered to get optimized performance out of your heater. This innovative solution modulates heaters with full PID control that implements various outputs and inputs. While the Premium User Interface Module is the primary source of commands, you have access to several other control options:

  • You can use your Building Management System to interface with the PUI module
  • A Potentiometer can be used to control the MP Series in spot heating and outdoor heating environments. This will allow you to manually manage the firing rate of the heater based on the dial position.
  • A single-stage thermostat can be utilized to control the MP Series in the most simple form.
  • As an option, an external thermistor can be used with a single-stage thermostat to best meet the demands of the space.

Contact ATI of New York for Detroit Radiant Products

At Applied Technologies of New York, we help facilities from all industries find the best and most efficient heating solution. And our experienced, factory-trained sales engineers will conduct an in depth needs analysis to guide you to the most suitable MP Series model.

Contact us today to learn more about this cutting-edge line of modulating infrared heaters.
