Turning Up the Heat on the Power Flame Type JA Forced Draft Gas Burner

Turning Up the Heat on the Power Flame Type JA Forced Draft Gas Burner

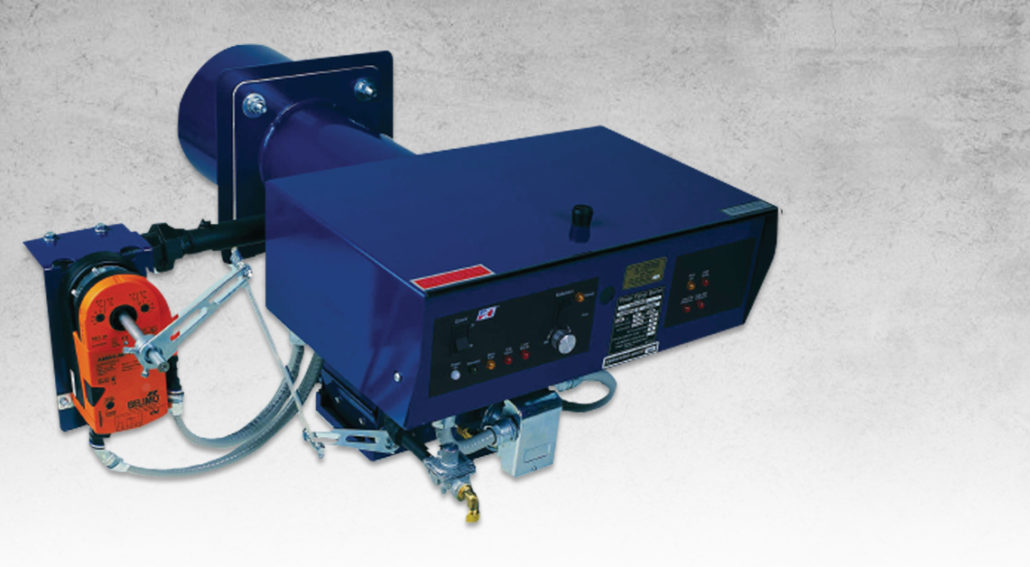

The Power Flame Type JA is a high-performance forced draft gas burner. This small to medium range burner is uniquely engineered to fire LP gas, natural gas, and a vast complement of other types of fuels.

This system includes cutting-edge features, a robust and wide range of capabilities, and the durability you’ve come to expect from the Power Flame brand. Continue reading to learn more about a few Type JA burner highlights, features, and specifications.

Efficiency & Dependable Operation

The Power Flame Type JA gas burner was created to deliver optimum combustion efficiency and exceptional operating dependability. It’s engineered with a flame retention firing head that is designed to mix the fuel and air more efficiently than traditional units. This innovative firing head utilizes a pre-mix zone for combustion with a stainless steel multiport diffuser — which delivers a vast range of steady operation in both positive and negative combustion chambers.

The JA burner is versatile enough to fire confined combustion chamber configurations and high-pressure drop. With this state-of-the-art unit, operating system adjustments are reduced to deliver trouble-free operating performance and startup. In addition, every Power Flame packaged combustion system is factory fire-tested to provide a cost-efficient installation and startup.

Highlights of the Power Flame Type JA

The Type JA burner delivers efficient combustion without the use of refractory or other types of expensive flame support devices. It features an integrally mounted control cabinet that offers many of the annunciation features typically reserved for larger, industrial size systems. A few key highlights of the Power Flame Type JA burner include:

  • The totally enclosed control cabinet offers additional protection with easy access to the key operating components.
  • Mounting flange flexibility allows the simple adaption to a range of firing head insertion depths.
  • The circular furnace opening requires no special cutting of the combustion chamber front plate.
  • arrow-right
    The Alpha System LED Indicators & Switches allow operator annunciation, while other small to medium size burners do not.
  • arrow-right
    Multi-louvered combustion air damper assembly promotes the more precise control over fuel-air ratios.

Standard Features on the Power Flame Type JA

The Power Flame Type JA includes a generous offering of standard features designed to meet your application needs. These features include:

  • Leakage test, pilot and main gas cocks
  • Motor with 3450 RPM
  • Squirrel cage blower
  • arrow-right
    Cabinet enhanced with Alpha System LED indicators (power, demand, FSG alarm, main fuel, customer selectable)
  • arrow-right
    Control switch
  • arrow-right
    Pilot and main gas pressure regulators
  • arrow-right
    Gas ignition transformer and gas electric pilot
  • arrow-right
    Air safety switch
  • arrow-right
    Flame safeguard with flame rod and intermittent pilot and pre-purge (only natural gas)

Type JA Optional Features

In addition to the previously mentioned standard features, the modular design of the JA produces ample flexibility and allows you to choose optional features that best meet your application needs. The optional features available on the JA include:

  • Flame safeguard with UV and Intermittent pilot for natural gas
  • Flame safeguard with UV and Intermittent pilot for LP gas
  • Flame safeguard with UV and interrupted pilot
  • arrow-right
    Off-On diaphragm gas valve with individual gas pressure regulator
  • arrow-right
    Low-Hi-Low or Low-Hi-Off automatic air control with motorized gas valve,
  • arrow-right
    Modulation with automatic air control
  • arrow-right
    Customized control system and accessories

Power Flame Type JA Ratings & Specifications

The Power Flame Type JA forced draft gas burners are flexible, diverse, and reliable. With an output range from 300,000 up to 2,200,000 BTU/HR, you can choose from four different burner models to best match your application needs.

Burner Model

Max Natural Gas MBH

Nominal Boiler H.P. Max

J15A-10

700

16.7

J30A-10

1,075

25.6

J30A-12

1,260

30.0

J50A-15

2,200

52.3

Contact ATI of New York for the Power Flame Type JA

Since 1995, ATI of New York has represented the leading manufacturers of burners, boilers, and a variety of other combustion room related equipment. As the authorized manufacturer’s representative for Power Flame, we offer all models of the Power Flame Type JA burner as well as other Power Flame burners.

Most importantly, our experienced sales engineers will help you choose the best burner system for your unique needs. We work with a variety of industries, including:

We have an in depth understanding of all of the industries we serve and burners we offer. And after conducting an intuitive needs analysis, we’ll guide you toward the ideal solution to help you achieve your goals and objectives.

Contact ATI of New York today to learn more about the Power Flame Type JA burner or any other model.
