A Guide to Fulton Electric Steam and Hot Water Boilers

A Guide to Fulton Electric Steam and Hot Water Boilers

Fulton Electric Steam and Hot Water Boilers

Fulton manufactures an entire lineup of high-quality, reliable steam boilers, hot water boilers, and electric boilers with capacities ranging from 12 to 1,000 kW (1.2 to 100 BHP) up to 300 PSI for heating and process applications.

Fulton Electric Steam and Hot Water Boilers

Fulton’s vertically-designed, fully-packaged steam boilers are engineered and constructed to ASME specifications as well as any applicable standards and codes. Fulton's world-class electric boast exceptional efficiency due to the heating elements being totally immersed in water. The efficiency of these boilers can also be attributed to the pressure vessel being fully insulated.

With Fulton's electric boilers, radiation losses are minimal. By carefully calculating the heat-to-steam ratio, operating pressures are achieved quickly with the highest level of efficiency.

Unlike other conventional boilers, Fulton's electric boilers have no wasted fuel leaving the stack as a result of the burning of fossil fuels, which means no NOx (nitrogen oxides) are being transmitted to the atmosphere. Some of the key highlights of Fulton's electric steam and hot water boilers include:

  • Compact design and small footprint
  • No NOx emissions
  • Efficient, clean, safe and quiet operation
  • arrow-right
    Virtually 100% efficient
  • arrow-right
    Excellent choice when fossil fuels aren't available or when electric rates are more favorable
  • arrow-right
    Built/Certified to ASME, CSD-1, UL Packaged Boiler
  • arrow-right
    Solid, safe state relays with all wiring meeting NEC specifications
  • arrow-right
    Wired control panel box conveniently located in the front of the boiler.

Continue reading to learn more about Fultons top-of-the-line electric steam and hot water boilers.

Fulton FB-L & FB-W Utilizes Stainless Steel Heating Elements

Fulton utilizes low watt density elements created from stainless steel, which will not anneal as easily as copper elements. As a result, the stainless steel heating element bolsters the overall life expectancy of the boiler.

The small 12 to 36 kW boilers have horizontally mounted elements toward the bottom of the boiler; while the 50 to 1,000 kW elements are mounted vertically. In addition, Fulton offers optional Incoloy elements that are engineered to remain stable throughout extended periods of exposure to high temperatures. The Incoloy elements also offer an increased resistance to corrosion due to stress.

Fulton Electric Steam and Hot Water Boilers

Robust Manufacturing

The Fulton FB-L and FB-W are engineered with intelligent designs to increase the life expectancy of the boiler and maximize boiler pressure vessel integrity. All Fulton boilers typically feature construction parameters that include material thicknesses more than 30% above ASME minimum requirements. Stainless steel units are offered for Clean Steam applications or RO/DI water.

Easy to Maintain and Inspect

The elements in all of Fultons electric steam and hot water boilers are designed to allow easy accessibility. Each boiler includes features that allow for quick removal for inspections or service by simply unbolting the elements from the flanges on the side or top of the boiler.

Contraction and expansion of the elements allow scale to easily flake off and drop to the bottom of the boiler. These boilers include strategically placed 3"x4" handholes facilitating simple inspection and periodic cleanout maintenance.

All Stainless Steel Systems for Clean Steam Applications

Fulton's complete stainless steel systems offer extra resistance to corrosion and are ideal for applications requiring clean steam.

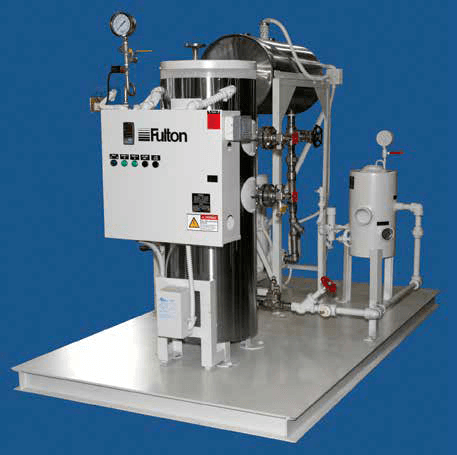

The system pictured on the right contains a 50 kW stainless electric steam boiler engineered with:

  • All stainless steel piping
  • Stainless steel return / feedwater tank
  • Stainless steel system pump
  • arrow-right
    A blowdown tank

This system is used to create sufficient clean steam for the production of pacemakers.

Fulton Electric Steam and Hot Water Boilers

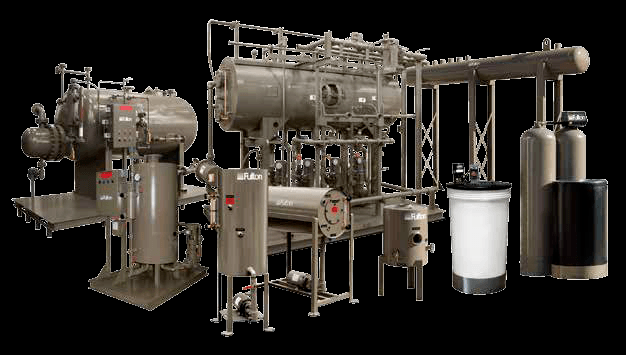

Fulton Ancillary Equipment

The steam boiler is only one part of a well-designed system. The proper collection of condensate and delivery of feedwater are both necessary for the production of steam. The experts at ATI of New York will work with Fulton to create custom or standard vessels to perform the required tasks up to ASME code or non-code — based on the individual needs of your system or area.

Fulton Electric Steam and Hot Water Boilers

Fulton offers auxiliary equipment that can be used to control pressure, quality, storage capacity and temperature of steam. The quality of water used in the steam boiler is directly related to the life of the system.

Equipment for water treatment works to ensure the highest quality of feedwater, so the deposits and corrosion in the boiler can be minimized. The experts at ATI of New York will work with you to match your needs to the equipment you need.

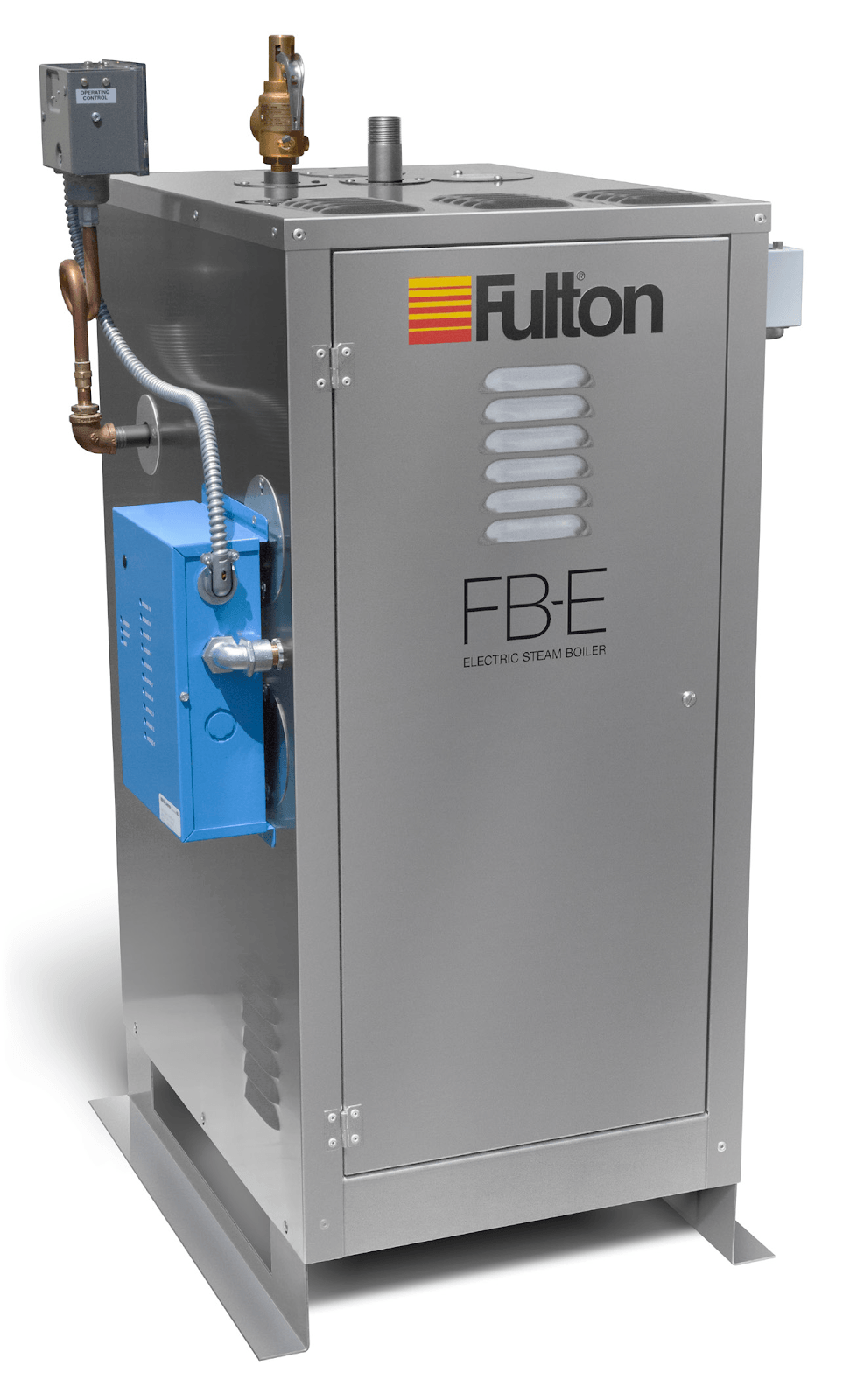

Fulton FB-E Electric Steam Boilers

The Fulton FB-E is a reliable and compact electric steam boiler ranging from 12kW up to 180kW. A few key highlights of the Fulton FB-E Electric Steam Boiler includes:

  • Clean and safe
  • Compact design
  • Zero emissions
  • arrow-right
    Nearly 100% efficient

The Fulton FB-E electric steam boiler is capable of producing high-quality saturated steam with virtually 100% efficiency. This clean-running, combustion-free boiler offers safe operation and achieves zero emissions. It features a design pressure of 100 PSI and ASME-M Certification.

Nearly 100% efficient

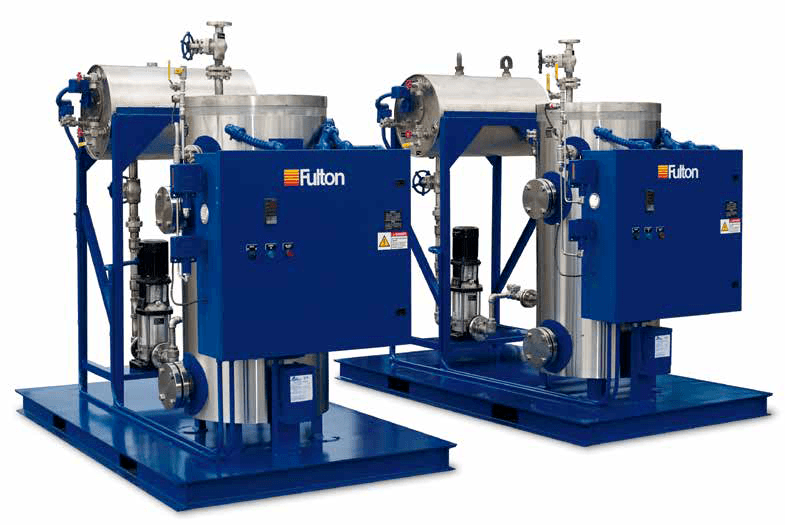

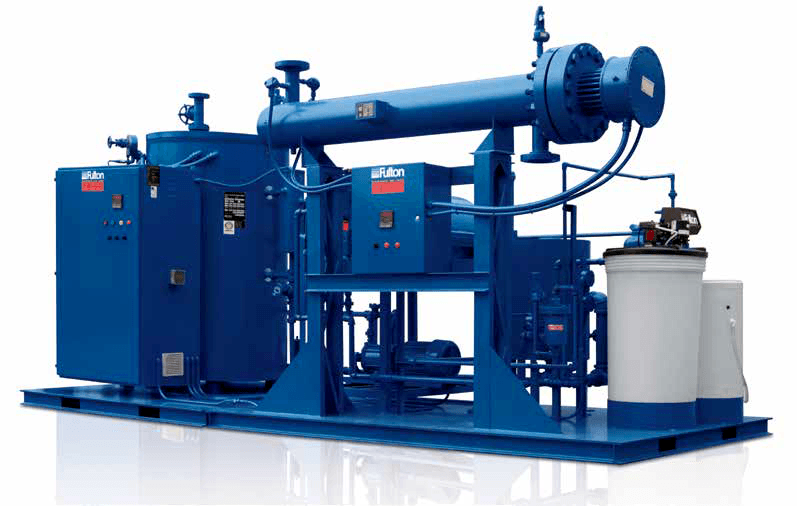

Fulton Engineered Electric Steam and Hot Water Systems

When you choose a Fulton engineered boiler, you'll gain access to more than three decades of experience in engineering and building skid systems. Paired with ATI of New York's seasoned experts, Fulton's team of engineers, project managers, and technicians will work with you to help you choose the best solution for your application. Most importantly, your skid boiler system will be designed and built in one place.

Fulton Electric Steam and Hot Water Boilers

All Fulton engineered systems include state-of-the-art operating controls and feature single point connections ready for water and power hook up at the location. This will save you a significant amount of money, time, and frustration. With a Fulton engineered system, it's designed specifically for you, your facility, and application. You'll enjoy:

  • Turnkey operation
  • Highly experienced staff at Fulton and ATI of New York
  • Collaborative consultative approach
  • arrow-right
    Simplification of installation
  • arrow-right
    Single source responsibility
  • arrow-right
    Skids moved in the most economical way

Contact ATI of New York for Fulton Electric Boilers

ATI has been a leading representative for Fulton Boilers for a number of years. We offer the full lineup of Fulton's cutting edge electric steam and hot water boilers. Most importantly, we have the experience and skills to understand your needs and suggest the best possible solution.

Contact ATI of New York today for Fulton's world-class electric steam and hot water boilers.
